Solutions for tomorrow

Jimco disinfection systems

Higher hygiene demands in the livestock as well as food processing and pharmaceutical industry drives the need to reduce potential contamination with bacteria as it may result in a costly production shutdowns and product failures.



Jimco is our technology partner to provide solutions to reduce and eliminate, bacteria, microorganisms and odors using UV-C & Ozone technology to disinfect your air and surfaces easy and safely.

Jimco disinfection for your benefit

Disinfection systems for air and surfaces

Jimco FLO-D automated disinfection system

Efficient disinfection, without chemicals or water with a kill rate of up to 99.9%

JIMCO FLO-D disinfection systems is an automated solution for disinfection of  surfaces and facilities by using combined UV-C & Ozone technology, to eliminate microorganisms and odors, a kill rate of 99.9% of all microorganisms may be achieved depending on the applied UV-C dosage,



​The FLO-D is equipped with PLC-control, special UV-C sensors developed by JIMCO, to ensure that the UV-C light is 100% effective to surface disinfection.​ Ensuring efficiency as well a time and resources required.



The FLO-D is available in a mobile as well as fixed versions to meet customer requirements.

Jimco FLO-D MINI MARK 2 automated mobile disinfection system

Efficient disinfection, without chemicals or water with a kill rate of up to 99.9%

JIMCO FLO-D MINI MARK 2 disinfection systems is an automated solution for disinfection of  surfaces and facilities by using combined UV-C & Ozone technology, to eliminate microorganisms and odors, a kill rate of 99.9% of all microorganisms may be achieved depending on the applied UV-C dosage,



​The FLO-D MINI MARK 2  is equipped with PLC-control with datalogging, special UV-C sensors developed by JIMCO, to ensure that the UV-C light is 100% effective to surface disinfection.​ Ensuring efficiency as well a time and resources required.

Applications & Users

  • Cold storage
  • Composting plants
  • Damage recovery service
  • Food processing plants
  • Garbage sorting facilities
  • Hatcheries
  • Hospitals
  • Livestock buildings disinfection
  • Pharmaceutical Production
  • Reefer container disinfection
  • Seed Disinfection

And many more………….

DISINFECTION WITH UV-C AIR-DISINFECTION

Air-disinfection

The airborne microorganisms are accessible for the UV-rays, while the conventional means of air-disinfection are useless or not applicable. No matter how indispensable and important they may be in the field of disinfection of medical equipment.

Surface disinfection

Disinfection procedures of packaging materials in the food industry, as well as manufacturing

Possibilities and problems in the area of disinfection as mentioned in the following are dependent on so many conditions related to plants, that the stated values are only usable as a first step towards the specification of a disinfection plant. As many as possible of the theoretically stated values should be compared through examination in practice.

The result of a surface disinfection depends heavily on the character of the material to be free of germs. Through UV-radiation it is – as already mentioned – only possible to inactivate the bacteria that are reached by radiation. This means that for the application of radiation for disinfection it is important to consider that disinfection of solid objects only succeeds, when the total surface of the object is exposed to radiation, and when this surface has no irregularities where bacteria can hide and thus be protected from radiation. As, however, the surface roughness causes the formation of micro-shadowiness many bacteria may escape. Bacteria located deeply are generally not reached at all – due to the low penetration depth of the radiation. However, because of bends, the serious effect of forming of micro-shadowiness is somewhat reduced.



In practice, disinfection – or better still – the removal of bacteria from solid surfaces and packaging materials (which may be of widely varying artificial materials: glass, sheet metal, cardboard, folio, etc.) must be carried out with intensive direct radiation.

Often it is found that further disinfection with ordinary disinfection means is useful for a good result. Besides, it is important that once sterilized material may be kept very much free of germs on the further road of manufacturing with UV-radiation, as the germ contents of the air are strongly reduced through the simultaneously obtained air radiation. Should the disinfection be limited to similar materials, protection of staff is relatively simple: The plant is completely protected. Also, indirect (reflected) radiation should not reach outside.

With the use of air disinfection, the effect is that the total level of airborne bacteria in a room is considerably reduced. As the natural circulation of air at some point leads all layers of air once through the area of radiation thereby preventing contagious sources from the air, which are of considerable significance which plays a role for many illnesses and infections. However, one must always be aware that bacteria-free air or even with a reduced number of germs does not in itself have any disinfecting effect.

Water quality and disinfection

The quality of water has a decisive influence for the influence of the disinfection. Substances that make the water unclear can have influence on the efficiency. The advantage of UV-C radiation is that it is not depending the visible light. Decisive is, if the small particles in the water absorb or reflect the UV-C radiation, where this influences the degree of penetration. If the water quality is poor, the sterilization can be improved by usage of active coal or sand filters. Obtaining the thresholds for drinking water, it is possible to get a full UV-C sterilization without any problems at all!

Algar

This description covers a range of spore plants with about 8000 living kinds – varying from single-celled to larger types.

Some important groups are:​

  • Split algae (blue green algae)
  • Diatomeen (Silicon algae)
  • Green-, brown- and red algae

Algae contain chlorophyll, at times supplemented by other coloring matter, which means that they can nourish themselves through assimilation. UV-dose values for some types of algae are mentioned here. A remarkable feature here is the very high dosage, in some cases with potencies at higher levels than e.g. the dose for bacteria.

BACTERIA

Bacteria is a major group of single-celled plant organisms which multiply by division. They cause illness, fermentation, and aging. Fundamental forms for bacteria cells are:

  • Ball (Coccus)
  • Small rods (Bacillus and Bacterium in the most restricted sense)
  • Corkscrew (Spirillum, Vibrio, Spirochete)

In favorable conditions, many bacteria form resistant lasting/permanent spores (these spore-producing bacteria are also collectively termed as bacilli (germs). Generally, spores are more resistant to high temperatures and UV-radiation than bacteria, which is why it is necessary to choose ten times the dose that would be necessary for the destruction of bacteria. Under favorable conditions, the spore develops into a new bacterial cell.​

YEAST FUNGI

Yeast fungi are uni-cellar plant-like microorganisms (Sacharmyces and other relatives to snake fungi). They do not contain chlorophyll and differentiate themselves from the mold by multiplying in a different way. Like some kinds of bacteria, yeast fungi can also form spores. In practice, yeast fungi are widely applied. The most important applications are beer yeast fungi (lower and upper yeast fungi), yeast fungi for raising bread, wine and food items (dried, pressed yeast fungus).

The pattern of yeast fungi reaction to UV-radiation is similar to that of mold fungi in which processes the aim is the destruction of the “wild” yeast fungi.

MOLD

This description covers a group of microorganisms, spread through spores. Mold fungi form cotton wool-like, entangled and puffball -like expenses on plant or animal matter (material), causing a putrefying (rotting) process. Mold fungi are also seen as parasites causing illness in humans and animals.

Some kinds are:​

  • Head mold (mucor) on fruit and bread
  • Flask (spadix) or pouring jugs (Aspergillus), on moist plant matter, fruit, bread, leather
  • Brush mold (botrytis cinera), perishable fruit, especially strawberries and half ripening grapes

Other kinds of molds serve as the basis for antibiotics. This includes penicillin and streptomycin.

First mold fungi (and yeast fungi) show activation when radiated with small doses of UV. With larger doses, they are killed, in which process the spectral effect is approximately the same as with the bacteria. Also here the spores are essentially more resistant than vegetative kinds.

VIRUS

This term covers a group of micro-organisms of largely unknown nature, all of which cause illnesses in humans, animals, and plants. Viruses are so small that bacteria-impermeable filters cannot trap them. Not until the use of the electron microscope, has it became possible to observe all kinds of viruses. All viruses have the characteristic of not thriving on dead matter, which is why they can only be cultivated in living substances. Viruses are stopped in their action when exposed to UV-C 253.7.

There are important differences in the resistance towards UV-C radiation for the various kinds of micro-organisms. The percentage for dead bacteria is not proportional with the dose of radiation, where, however, they increase with an increasing dose. In the list, a collection of the necessary doses for a certain effect of disinfection is given. The information is from the current literature.

The values from various authors are at present remarkably deviant. This may be due to the different types of bacteria – different growth conditions and the temperatures concerned. Calculations based on the inactivation of micro-organisms show a variation in the interpretation of the conditions of radiation for necessary dose values.

This means that with e.g. a radiation value E, which over a certain progress of time T, reaches a certain effect of disinfection, arrive at the same result when the two factors vary, but their result E multiplied by T is the same. However, it is only possible to change the time T within certain boundaries, as the micro-organisms by excessively prolonged radiation and at a too low radiation value E, in the beginning, will only be able to multiply, due to the fact that the UV-dose is too small. For these reasons, the desired effect of inactivation is achieved much later than this law stipulates. The surroundings, in which microorganisms are found, greatly influence the desired level of disinfection. In water e.g. there are coli-bacteria, which are 10 times more resistant than in air. Increased moisture content in the air greatly increases the necessary dose.​​​

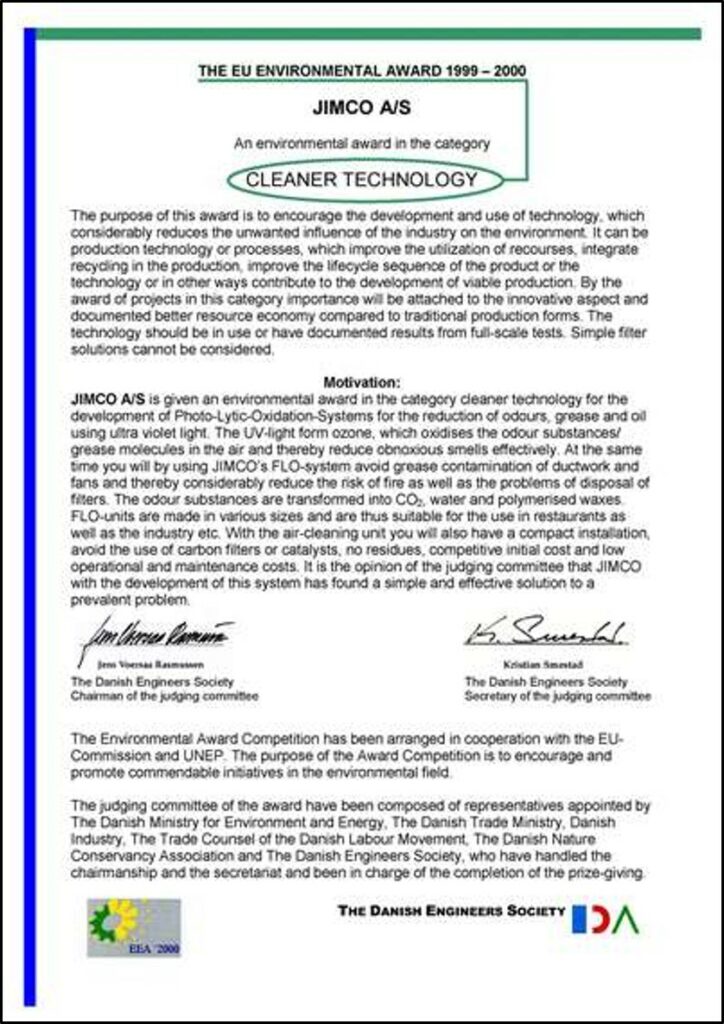

Download Brochures and Award

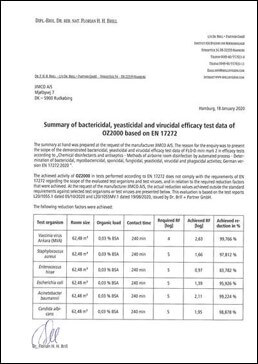

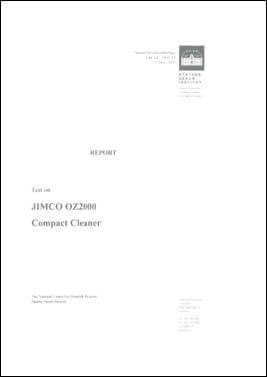

Download Test certificates

Indoor Air purifiers & odor control

Healthy indoor climate is essential for people’s wellbeing, in today’s environment it is not enough to ventilate well to remove Co2, it is also necessary to reduce the exposure to virus, bacteria, mold spores and odors to ensure a safe environment.



Jimco a/s is our technology partner to provide solutions for better indoor climate. Jimco technology can reduce virus, bacteria, mold spores and odors up 99.84%

We provide solutions for private houses as well as industrial facilities, commercial buildings and leisure facilities.

Air purifiers for indoor spaces

Air and surface cleaning without filters or chemicals
