JS Ventilation cool air ceiling

Simplified Cooling & Ventilation that saves energy and space.

JS Ventilation cool air ceiling for controlled ventilation and cooling of workspaces

Cool Ceiling is energy efficient high cooling capacity air conditioning that safe space

The unique cool ceiling gives architects and engineers design freedom as there is no large air conditioning ducting which result in lower ceiling space and therefore can reduce the building height or provide space for more floors when constructing a new multi-story building or provide increased ceiling height in existing buildings.

The Cool Ceiling also have lower maintenance cost, lower energy consumption and reduced noise, although providing a higher cooling capacity and increased ventilation without any draft.

More room with JS Ventilation Cool Air ceiling

Engineering team at JS Ventilation have made a study the famous Burj Khalifa today, they estimate that the developer could achieve following benefits with Cool Air Ceiling

  • Get additional 16 floors without increasing the building height of 828 m

  •  Maintain 165 floors but reduce the height of the building with 88 m

JS Cool Air Celling for your benefit

Applications & Users

  • Coffee shops
  • Cold storage
  • Dental clinics
  • Elderly care facilities
  • Fast-food outlets
  • Fitness centers
  • Grocery stores
  • Hospitals
  • Hotels
  • Indoor Golf facilities
  • Massage clinics
  • Medical clinics
  • Offices
  • Resorts
  • Restaurants
  • Retails store
  • Retirement homes
  • Schools
  • Shops
  • SPA’s
  • Supermarket
  • Wellness centers

And many more………….

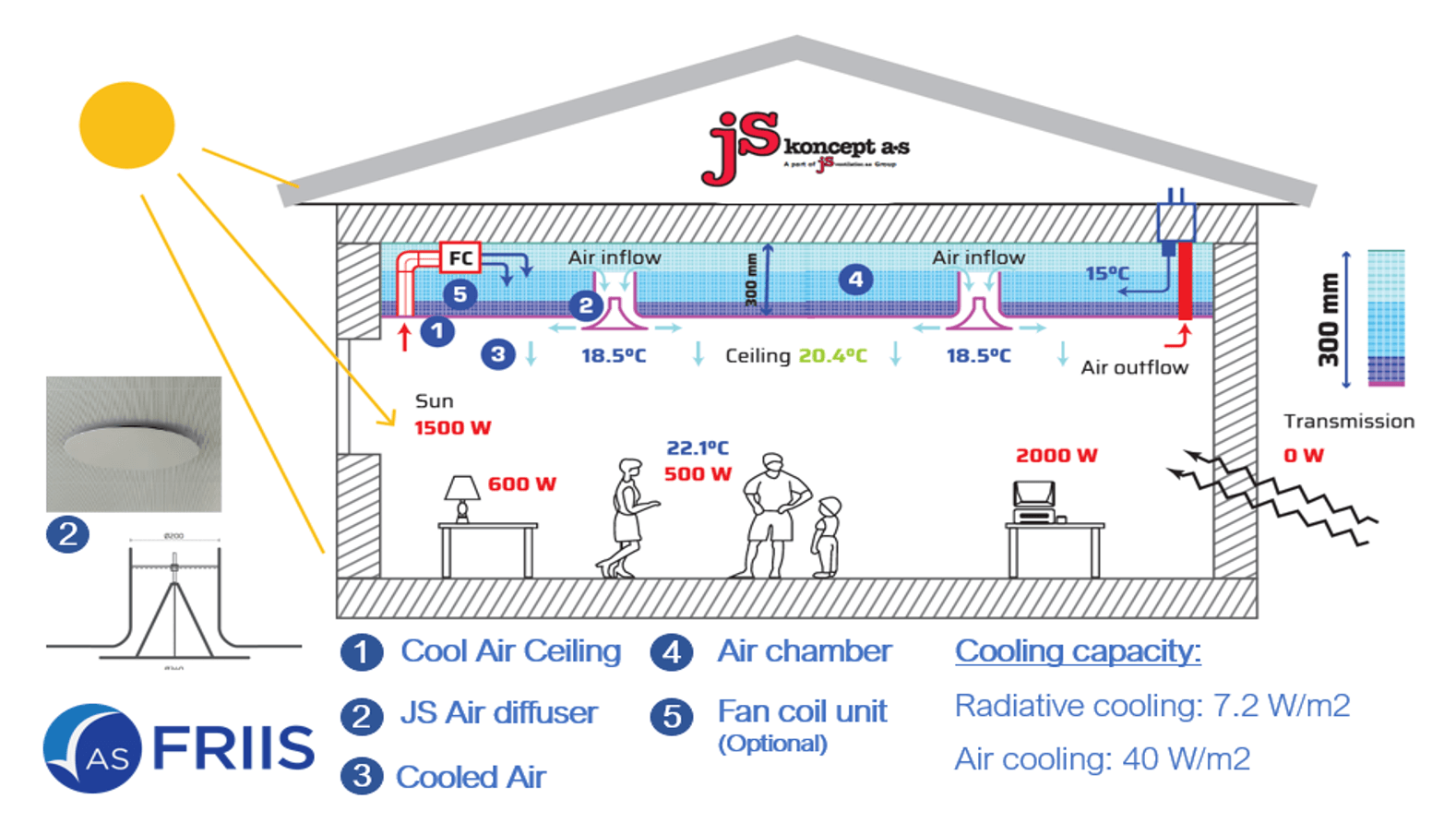

Cool Air Celling function sample

The 3 JS Cool Air solutions

JS Cool Air Ceiling Standard

The basic Cooling solution from JS Ventilation that offer efficient cooling with low space requirements above ceiling.



”Cool Ceiling” causes no draught or condensation problems and produces 100 Watt/m2 in indoor climate category A.



JS Koncept’s calculation program, developed by The Danish Technological Institute, makes a complete and accurate calculation of air and temperature.



This calculation is made for all rooms and equals as documentation for the system. With this documentation it is only necessary with regulation for the room and not for every inlet diffuser.

JS Cool Air Ceiling Standard

The basic Cooling solution from JS Ventilation that offer efficient cooling with low space requirements above ceiling.

Components

  • VAV-Damper in air inlets
  • Cool Ceiling (Metal Ceiling w. noise insulation)
  • JS Inlet diffusers mounted in the ceiling
  • JS Cool Ceiling control system


Exhaust diffusers can be placed in the ceiling, in the wall or where it is best for the design of the room

Animation video JS Cool Air Ceiling Standard

JS Cool Air Ceiling w. Fan coils

The enhanced Cooling solution from JS Ventilation with additional Fan coils for cooling (or only fan coils) this solution offer high load and efficient cooling with low space requirements above ceiling.



”Cool Ceiling” causes no draught or condensation problems and produces 100 Watt/m2 in indoor climate category A.



JS Koncept’s calculation program, developed by The Danish Technological Institute, makes a complete and accurate calculation of air and temperature.



This calculation is made for all rooms and equals as documentation for the system. With this documentation it is only necessary with regulation for the room and not for every inlet diffuser.

JS Cool Air Ceiling w. Fan coils

The enhanced Cooling solution from JS Ventilation with additional Fan coils for cooling (or only fan coils) this solution offer high load and efficient cooling with low space requirements above ceiling.

Components

  • VAV-Damper
  • Cool Ceiling (Metal Ceiling w. noise insulation
  • JS Inlet diffusers mounted in the ceiling
  • Fan Coil(s)
  • JS Cool Ceiling control system


Exhaust diffusers can be placed in the ceiling, in the wall or where it is best for the design of the room

Animation video JS Cool Air Ceiling w. Fan coils

JS Cool Air Ceiling hybrid (Fresh Air exchange)

The enhanced Cooling solution from JS Ventilation with additional fresh air inlet, this injection of fresh air to reduce Co2 combined with efficient cooling with low space requirements above ceiling.



”Cool Ceiling” causes no draught or condensation problems and produces 100 Watt/m2 in indoor climate category A.



JS Koncept’s calculation program, developed by The Danish Technological Institute, makes a complete and accurate calculation of air and temperature.



This calculation is made for all rooms and equals as documentation for the system. With this documentation it is only necessary with regulation for the room and not for every inlet diffuser.

JS Cool Air Ceiling hybrid (Fresh Air exchange)

The enhanced Cooling solution from JS Ventilation with additional fresh air inlet, this injection of fresh air to reduce Co2 combined with efficient cooling with low space requirements above ceiling.

Components

  • VAV-Damper in air inlets
  • Cool Ceiling (Metal Ceiling w. noise insulation)
  • JS Inlet diffusers mounted in the ceiling
  • Hybrid inlet fan coil with damper
  • JS Cool Ceiling control system


Exhaust diffusers can be placed in the ceiling, in the wall or where it is best for the design of the room

Animation video JS Cool Air Ceiling hybrid (Fresh Air exchange)

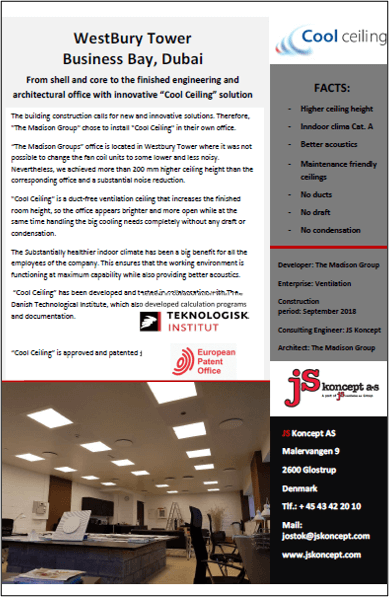

Download Brochures and references

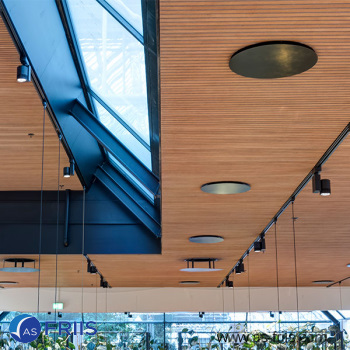

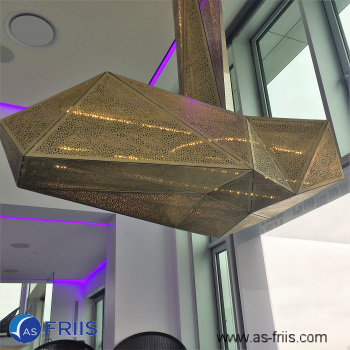

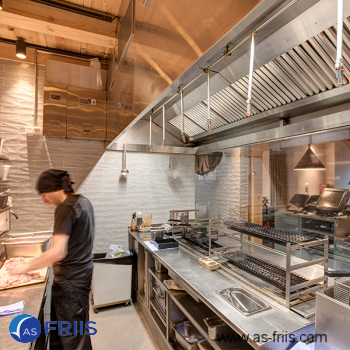

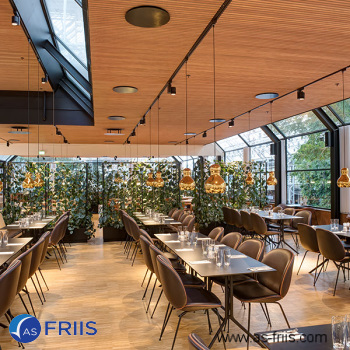

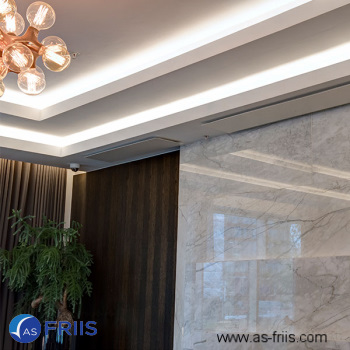

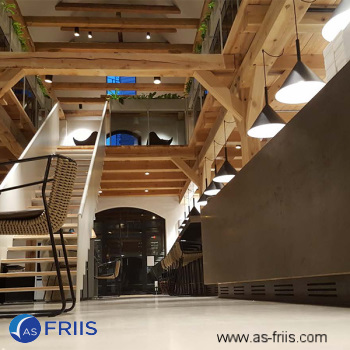

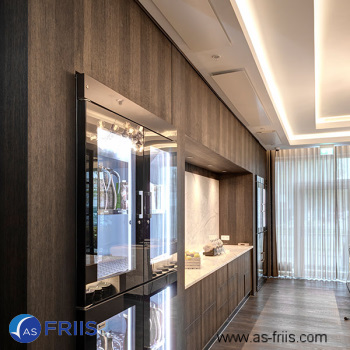

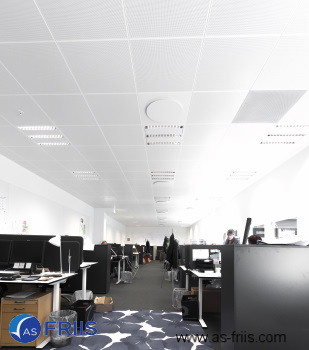

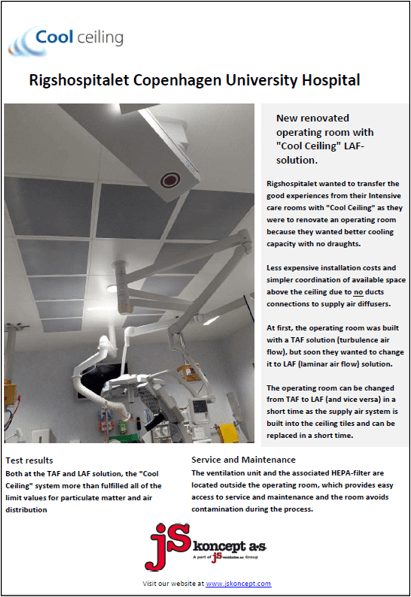

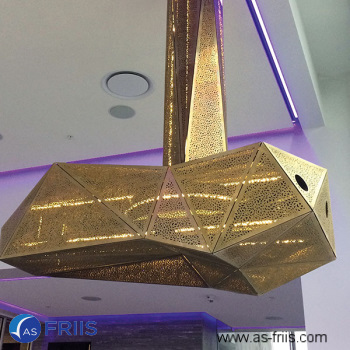

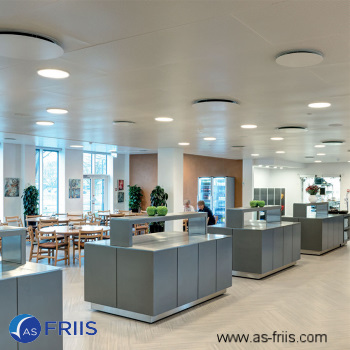

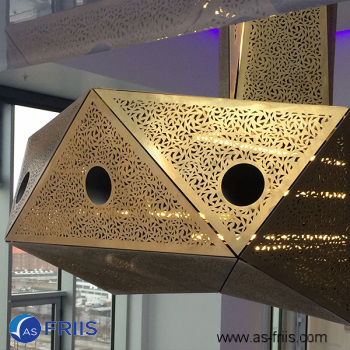

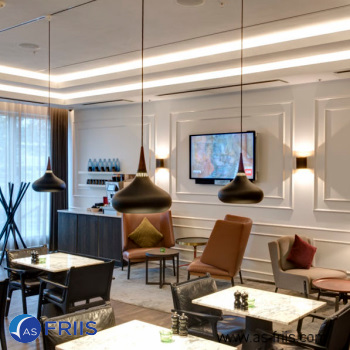

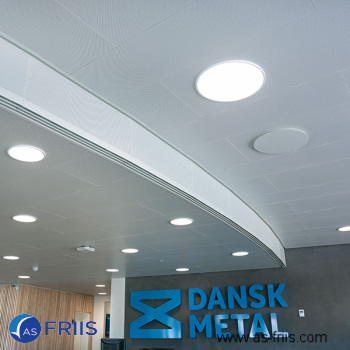

Gallery Cool Air Ceiling

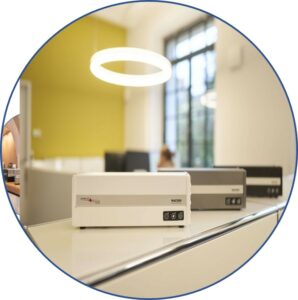

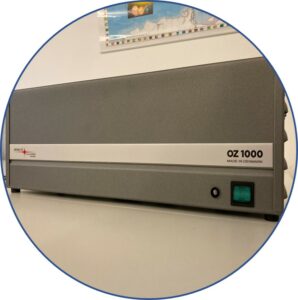

Air purifiers for indoor spaces

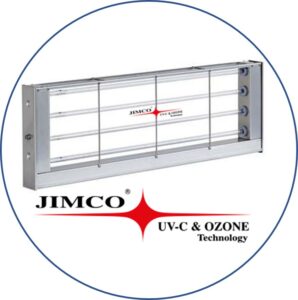

Air and surface cleaning without filters or chemicals
